ROTARY JUICE SCREEN

ROTARY JUICE SCREEN

Products Information

  • 1Suspending solids like bagacillo sand are efficiently screened, thereby reducing downtime for cleaning juice heaters due to less deposition of bagacillo on auto washing of screen line. This helps keep the screen free from deposition & chocking due to bagacillo.
  • 2Very low power requirement due to use of planetary box as drive.
  • 3Compact Design.
  • 4Helps reduces space requirement at mill house.
  • 5Requirement of statics screen totally eliminated.
  • 6Improves colour of sugar due to efficient removal of bagacillo from mill juice.

Eliminates process problems like:

  • 1Colour formation due to bagacillo reacting with milk of lime.
  • 2Lighter particles of bagacillo require more time to settle therefore more retention is required at clarifier.
  • 3Chocking of juice strainer & deposition of bagacillo on pump internals.
  • 4Maximum screening area for complete juice screening.
  • 5Complete construction in stainless steel ensure trouble free & maintenance free performance for years. Occasional lubrication is required. Designed inclination in through ensure quick removal of screened juice.
  • 6Screening drum rotate on special quality polymer rollers ensure lowest friction.
  • 7Caustic soda recirculation helps prevent microbial colony formation on screening apertures.

Product Video

Product Gallery

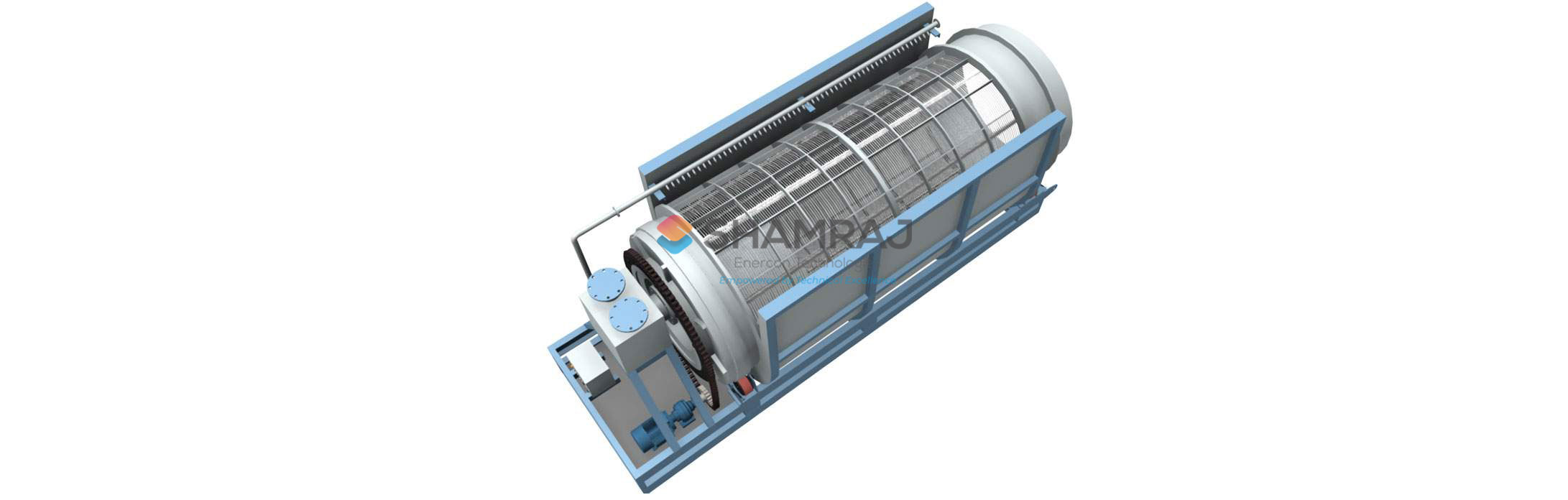

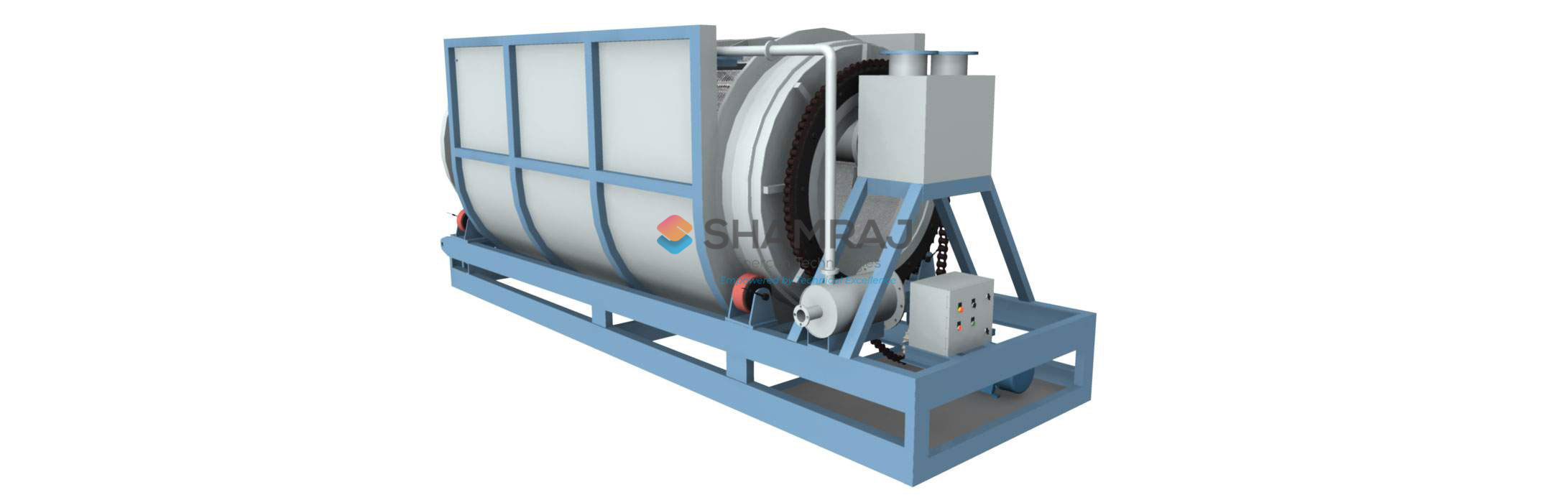

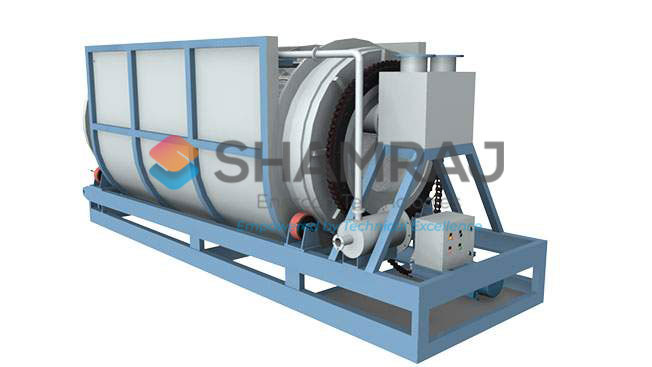

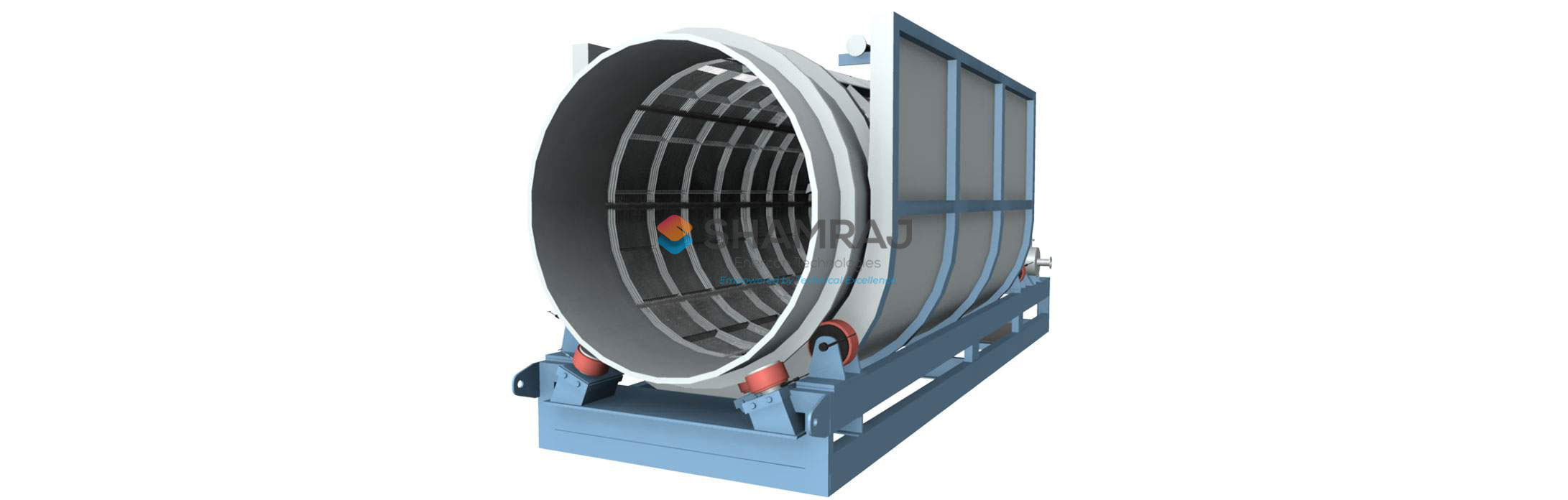

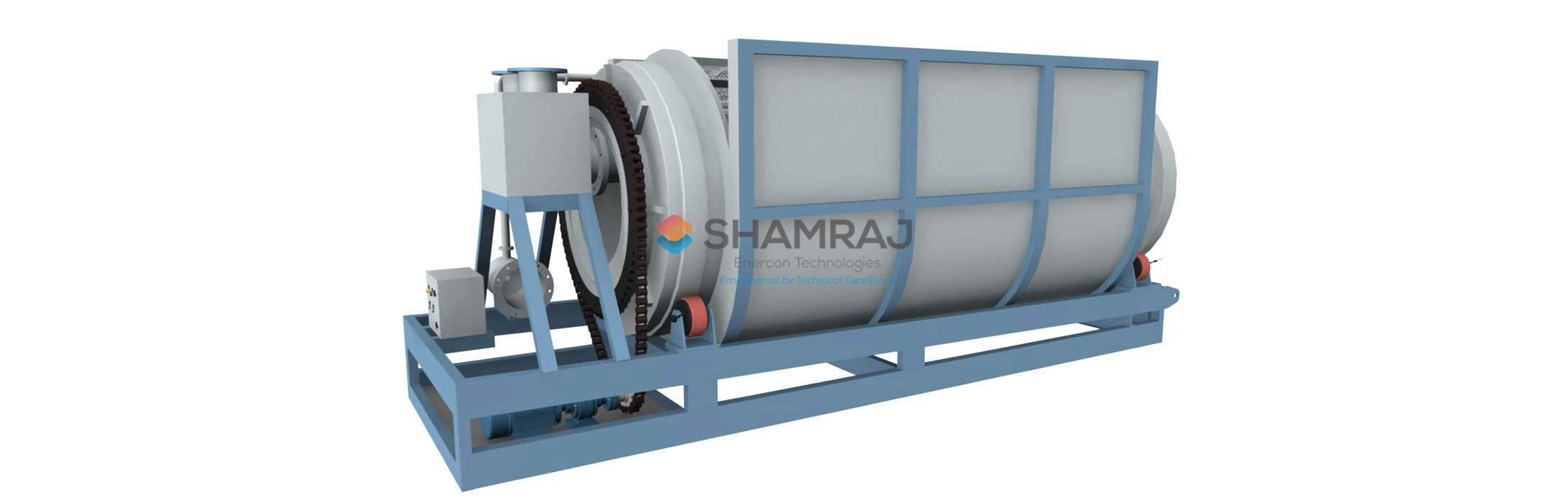

ROTARY JUICE SCREEN
ROTARY JUICE SCREEN
ROTARY JUICE SCREEN
ROTARY JUICE SCREEN

Our Prestigious Clients (For Rotary Juice Screen)

S No. Client Name Destination Screen Size
1 Nira Bhima S.S.K. Ltd., Indapur Maharashtra Ø 1800 x 3600
2 Kukadi Sahakari Sakhar Karkhana Ltd., Pimpalgaon pisa, Ahmednagar Maharashtra Ø 1800 x 3600
3 Gangamai Industries and Const. Ltd., Shevgaon, Aurangabad Maharashtra Ø 1800 x 3600
4 The Sangamner Bhag S.S.K. Ltd., Amrutnagar, Ahmednagar Maharashtra Ø 1800 x 2400
5 Bhima Shankar Sahakari Sakhar Karkhana Ltd., Pargaon Tarfe Avasari, Tal Ambegaon, Pune Maharashtra Ø 1800 x 3600
6 Sharayu Agro Industries Ltd., Kapashi, Motewadi, Phaltan Maharashtra Ø 2000 x 4000
7 Bhairavnath Sugar Works Ltd, Lavangi, Tal. Mangalvedha, Dist. Solapur Maharashtra Ø 1800 x 3600
8 The Sanjivani ( Takli ) S.S.K. Ltd., Kopargaon, Ahmednagar Maharashtra Ø 1800 x 3600
9 Swaraj India Agro Ltd., Phaltan Satara, (A/C–Walchandnagar ) Maharashtra Ø 1800 x 3600
10 Agasti Sahakari Sakhar Karkhana Ltd., Akole, Ahmednagar Maharashtra Ø 1800 x 3600
11 Vithal Refined Sugar Ltd. Village Pande, Karmala Maharashtra Ø 1800 x 3600
12 Shivaji Cane Processors Ltd, Shirala Sangli Maharashtra Ø 1500 x 2000
13 KGS Sugar & Infra Corp., Pimpalgaon (Nipani), Niphad, Nashik Maharashtra Ø 1500 x 3200
14 Vishwasrao Naik Sahakari Sakhar Karkhana Ltd. Chikhali, Shirala, Maharashtra Ø 1800 x 2400
15 Bhimashankar Sahakari Sakhar Karkhana Ltd., Pargaon Tarfe Avasari, Taluka Ambegaon, Pune Maharashtra Ø 2000 x 4000
16 Bhairavnath Sugar Works Ltd, Maharashtra Ø 1800 x 3600
17 Sadashivrao Mandlik Kagal S.S.K. Ltd., Kagal Kolhapur, Maharashtra Ø 1800 x 3600
18 Dwarkadhish Sakhar Karkhana Ltd., Satana Nashik Maharashtra Ø 1800 x 3600
19 Sucro-tech Equipments., Pune (Mahadik Sugar Ltd. Kolhapur) Maharashtra Ø 1800 x 3000
20 Nicks Technical Services., Pune ( 8 Nos for Various Projects ) Maharashtra Ø 1800 x 3600
21 Shree Tatyasaheb Kore Warana Sahakari Sakhar Karkhana Ltd. Warananagar. Maharashtra Ø 2400 x 4500
22 Sant Muktai Sugar & Energy Ltd., Ghodasgaon, Jalgaon Maharashtra Ø 1800 x 3600
23 Jai Hind Sugar P. Ltd. Achegaon, South Solapur A/C – Walchandnagar Maharashtra Ø 1800 x 3600
24 Baliraja Sugar Ltd., Purna Maharashtra Ø 1800 x 3600
25 Mohanrao Shinde Sahakari Sakhar Karkhana Ltd., Arag, Tal – Miraj. Maharashtra Ø 1800 x 4500 (New Screen)
26 Shri Makai Sahakari Sakhar Karkhana Ltd., Bhilarwadi Karmala/ Maharashtra Ø 1800 x 2400 (New Screen)
27 Shambhu Mahadev sugar and allied Ind. Ltd. Kalamb Maharashtra Maharashtra
28 Mylar Sugars Ltd., Huviahadagali, Ballari Karnataka Ø 1800 x 3600
29 The Ghatprabha Sahakari Sakkare Karkhane Niyamit. Gokak, Belgaum Karnataka Ø 1800 x 2400
30 Ryatar Sahakari Sakkare Karkhane Niyamit, Bagalkot Karnataka Ø 1800 x 3000
31 Shri Halasidhanath S.S.K. Ltd., Nipani Karnataka Ø 1500 x 2400
32 GEM Sugars ltd., Kundargi , Bagalkot Karnataka Ø 1800 x 3600
33 GEM Sugars ltd., Kundargi , Bagalkot Karnataka Ø 1800 x 4000
34 The Salem Co-op Sugar Mills Ltd., Namakkal Tamilnadu Ø 1800 x 3600
35 The Chengalrayan Co-op Sugar Mills Ltd. Villupuram Tamilnadu Ø 1800 x 2400
36 Kallakurichi Co-op Sugar Mills Ltd., Villupuram Tamilnadu Ø 1800 x 2400
37 Subramaniya Siva Co-op Sugar Mills Ltd., Gopalapuram Tamilnadu Ø 1800 x 2400
38 Perambalur Sugar Mills Ltd., Eraiyur Tamilnadu Ø 1800 x 2400
39 N.P.K.R.R. Co-op Sugar Mills Ltd., Nagapattinem Tamilnadu Ø 1800 x 2400
40 Tiruttani Co-op Sugar Mills Ltd., Tiruttani Tamilnadu Ø 1500 x 2400
41 Lemniscate Ultratek Industries P. Ltd. U.P. Ø 1500 x 2400
